Introduction：

 SLK-R4008 is a high-speed industrial wireless router basing on GPRS/CDMA/WCDMA/EVDO/LTE cellular mobile network, providing users high-speed wireless Internet and wireless data transmission.

 This product adopts 32-bit industrial dedicated communication processors, industrial wireless module and LINUX embedded real-time operating system, equipped with one SIM card slot, four LAN ports, one WAN port, one USB2.0 port and WIFI transmitter, which can provide high-speed internet connection or data transmission for LAN port equipment or WIFI equipment at the same time.

 Its operating temperature is from -40°C to 65°C, its input power is between DC12-28V, the product is also very stable and reliable through EMC test. It has been widely used in M2M industry of the Internet of things industrial chain, such as self-service terminals, smart power grid, smart transportation, smart home supplies, financial device, mobile POS terminals, automatic supply chain, industrial automation, intelligent buildings, fire control,  environmental protection, meteorology, digital medical treatment,  agriculture, forestry, water, coal, petrochemical and other fields.



Features:

 ●  High performance full band cellular wireless module

 ●   High performance dedicated routing chip

 ● aluminum cover ( protection level reaches IP30, mainly used in industrial grade environment)

 ●  Support DC12-28V working Voltage, -40+65℃ working temperature

 ●  Support Watchdog design (24 hours online)

 ●  Support Mobile and Unicom Telecom (4G 3G network optional)

 ●  Support 1 WAN port (10/100M), 4 LAN ports (100M), 2 WIFI interfaces(80211b/g/n), and 1USB interface









技术参数

 Cellular Network Frequency Support：

 Cellular Network Frequency

Network Type

 4G/3G/2G Version

•Supported TDD-LTE B38/B39/B40/B41

•Supported FDD-LTE B1/B3/B5/B8

•Supported FDD-LTE B1/ B3/ B5/ B7/ B8/ B20

•Supported FDD-LTE B1/ B2/ B3/ B4/ B5/ B7/ B8/ B28

•Supported TD-SCDMA  B34/B39

•Supported WCDMA/HSDPA/HSPA+  B1/B8

•Supported CDMA 1X/EVDO BC0

•Supported GSM/GPRS/EDGE 900/1800 MHz

EVDO 3G Version

Supported EVDO, CDMA2000 1X

HSDPA 3G Version

Supported HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM

Theory

of Bandwidth

• LTE CAT4- DL: 50Mbps, UL: 150Mbps

• TD-HSDPA/HSUPA-DL: 2.2 Mbps, UL: 2.8 Mbps

• HSPA+-DL: 5.76 Mbps, UL: 42 Mbps

• WCDMA – DL/UL: 384Kbps

• CDMA2000/EVDO DL: 1.8 Mbps, UL: 3.1 Mbps

Router characteristics

Firewall

Network Address Translation (NAT)

State full Packet Inspection (SPI)

Media

Access Control

CSMA/CA with ACK

VPN protocol

Supported IPSec, PPTP, L2TP

DHCP

Build-in DHCP (Dynamic Host Configuration Protocol)

Others protocol

Supported PPP, PPOE, DDNS, ICMP, VRRP etc



Hardware ：

 CPU

32-bit high performance communication CPU

Flash/RAM

16M/128M

OS

LINUX latest version

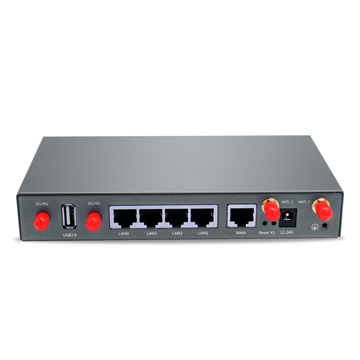

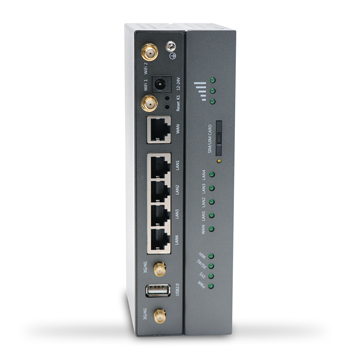

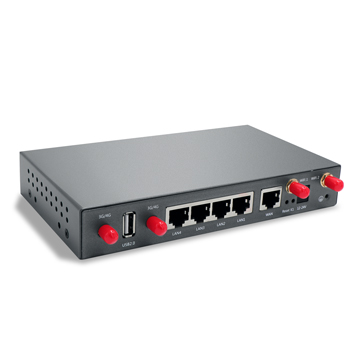

Interface：

 LAN Ports

4 x 10/100M ports

WAN Ports

1x 10/100M WAN ports

USB Ports

1x USB2.0 port

SD card

1x SD port

Debug

1x Debug interface（RS232 - RJ45 connector）

Reset

1x Reset

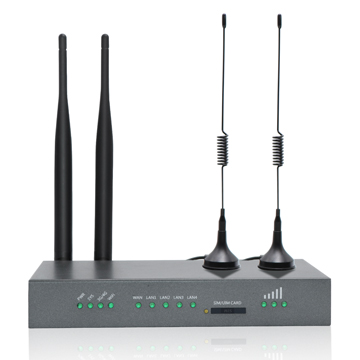

Antennas

1x 3G/4G Antenna (50Ω SMA interface)

2x WiFi or GPS antenna (optional)，or can use for 4G MIMO antenna

LED

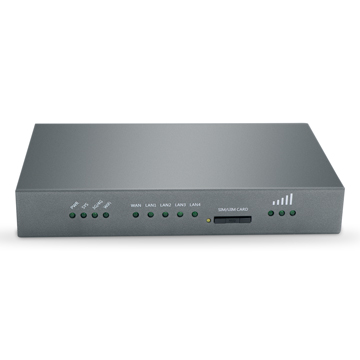

Power-SYS-LAN-WiFi-3G/4G LED

SIM Card

Supported 1.8/3.3V SIM card

we support SIM card converter to meet all size SIM card



Power interface ：

 Power supply

Default power

DC 12V/1A power adapter (US,EU etc standard option)

Working Voltage

12~38V

Working Current

Min: 260mA@12VDC

Max: 500mA@12VDC

Average:320mA@12VDC

Temperature

Storage Temperature: (-40°C to 75°C)

Working Temperature:  (-40°C to 65°C)

Relative Humidity

95%

Warranty

2 years



Size

L*S*H: 177mm x 100.5mm x 29mm

Weight

Gross weight: 2.2lb

Net weight: 1.3lb

Accessories

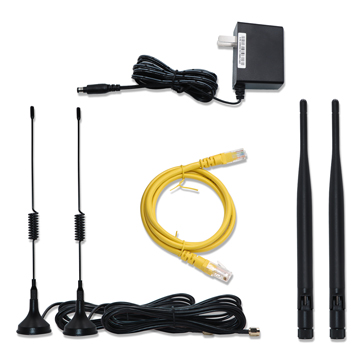

Seriallink Router, 1.5m long RJ45 Cable, 12V/1A Power Adapter, Antennas, User Manuel(PDF optional), Warranty Card, Certification





订购信息

Model

LAN

WAN

SIM slot

WIFI ANT

4 GANT

SLK-R4008-4_LTE

4

1

1

2

2

SLK-R4008-4_HSDPA

4

1

1

2

2

SLK-R4008-4_EVDO

4

1

1

2

2
